F45 Hybrid
A Game Changer in Yacht Stabilization
Quantum’s F45 Hybrid Power System combines hydraulic and electric power to reduce stabilizer energy use and maximize performance. Designed for efficiency and sustainability, it stores and recovers energy, bringing power savings of up to 80%.
Power reduction in Underway mode
Power reduction in Zero Speed™ mode
Up to $980,000 in Energy Cost Savings (based on an actual case study)
Less than 1kW Power Drop when in standby mode
The F45 is a innovative, electric-hydraulic hybrid power system that is scalable to larger vessels. This Hybrid Power System offers an alternative method to powering stabilizers, using the best features of a traditional hydraulic system and the cleaner advantages of a direct electric drive, making it major break-through in stabilizer technology! Overall, it requires 60% less power than a standard hydraulic system, only consuming energy as required, when required.
A traditional hydraulic system will continue to draw 40% of the maximum power, even when it is not needed, so there is a lot of wasted energy. The F45 drops to less than 1kW when in standby mode. These efficiencies do result in extreme power fluctuations that can cause problems for the ship’s generators and the overall grid. The remedy? Quantum has developed a solution to store and recover energy through the proprietary M.E.S.S. (Mass Energy Storage System).
Electric fin stabilizers also have some drawbacks, especially in larger vessels (60m+). They become cost prohibitive due to the prices associated with gear boxes and servo motors. Electric fins with gear boxes must be designed to withstand slamming loads, which is easier for hydraulic systems to handle with relief valves.
The F45 hybrid is a feat in engineering with it’s simplified, closed loop design to sweep the fins, proven to be 4X quieter that a traditional hydraulic system and does not generate heat. All of these attributes while reducing the carbon footprint and operating costs.

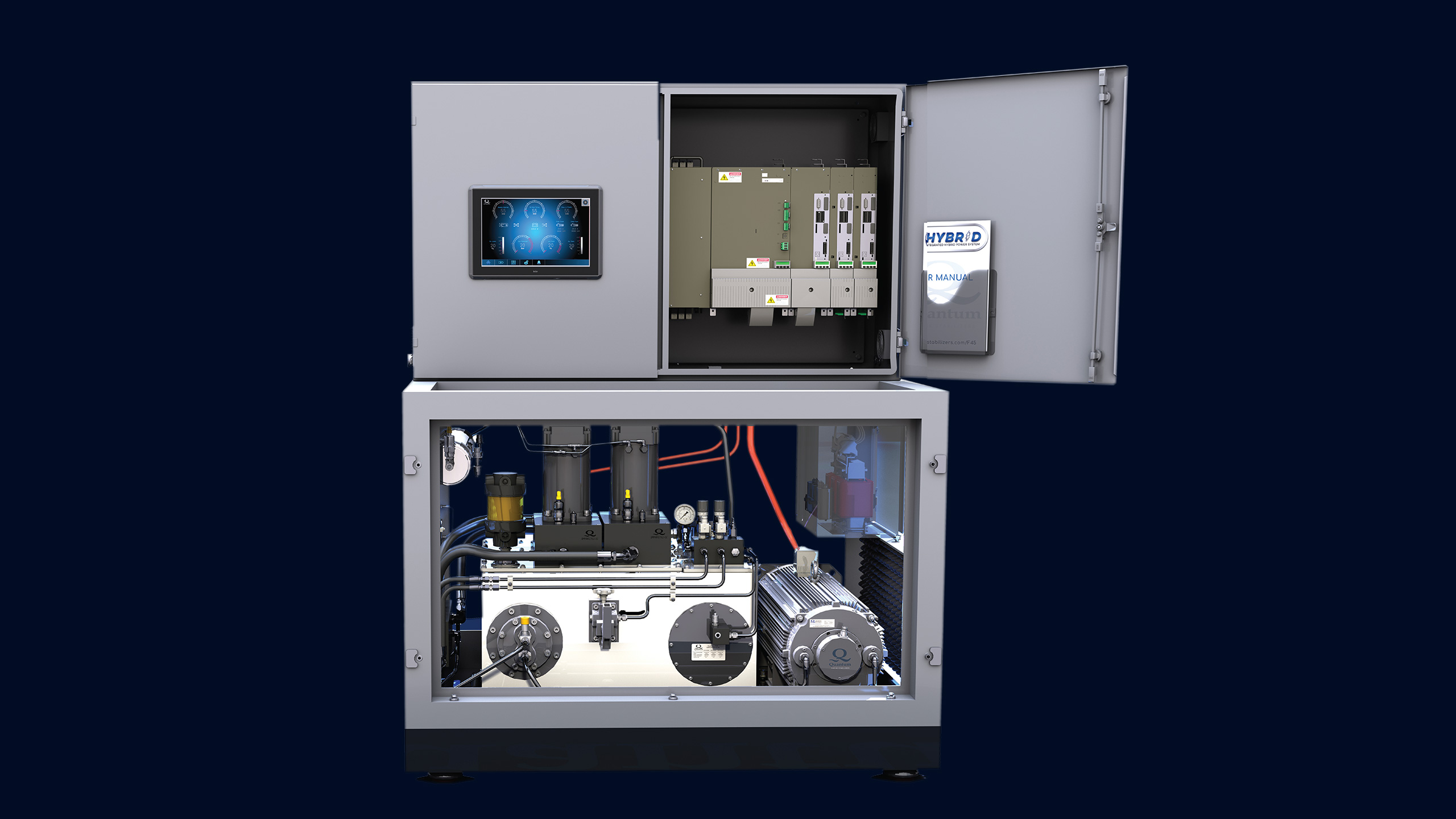

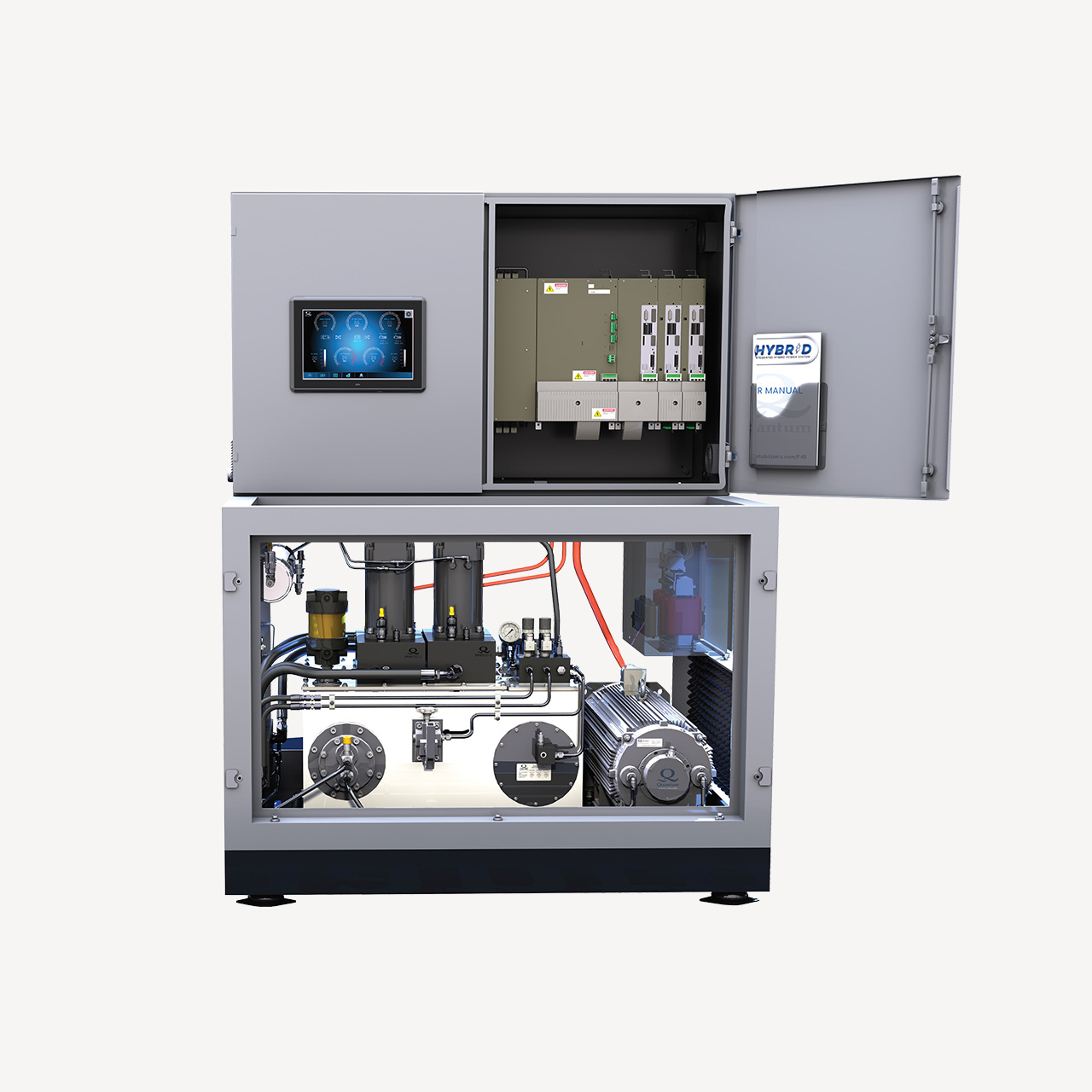

Piston Accumulator
Heat Exchanger
Oil Tank

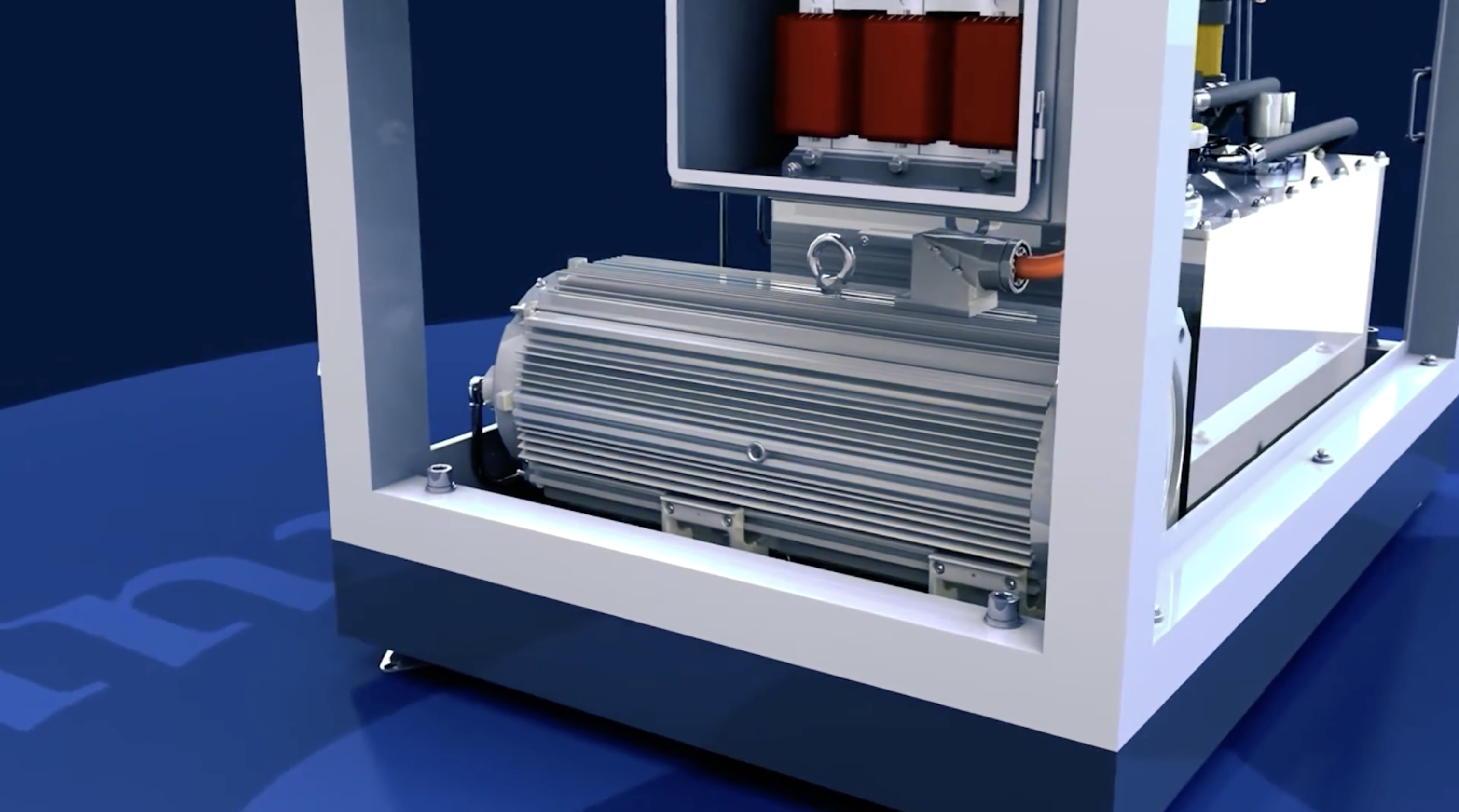

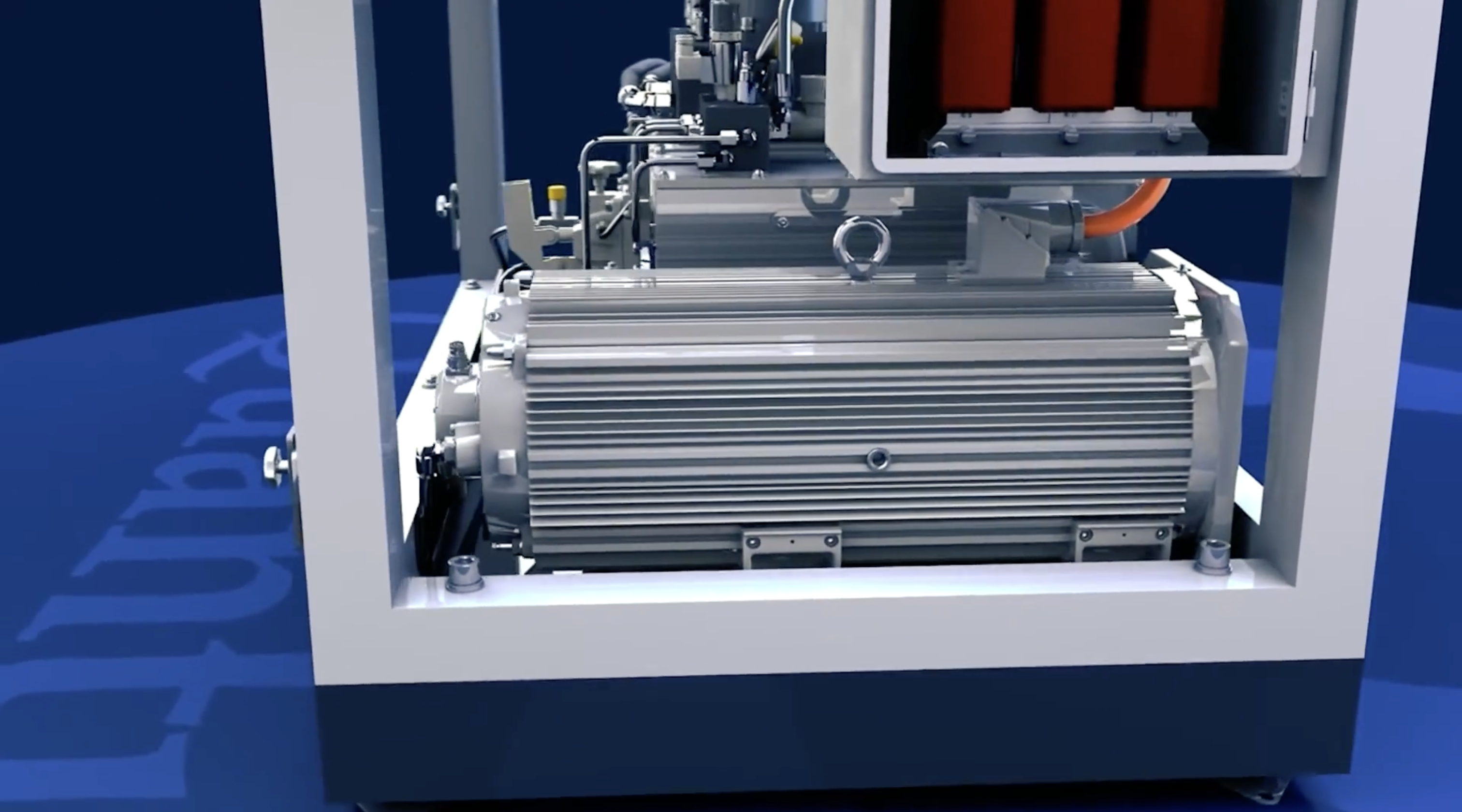

Servo Motor
Servo Motor
Mass Energy Storage System (aka MESS)
Charge
Select a feature above to learn more
Advantages & Features
The F45 can reduce the power usage of a vessel by up to 60% in zero speed mode, and 80% underway. It uses a patent pending, flywheel technology, to store and recover energy in a most efficient and effective way. Essentially, it marries the best attributes of the hydraulic and electric powering systems.
While the F45 increases power efficiency, the structure-born noise and heat generated have decreased. The team has built a sound enclosure for the equipment, and the entire hydroelectric power unit is mounted on an epoxy-granite mounting base. This makes the F45 Hybrid is 4X quieter than other traditional hydraulic systems.
The F45 generates smooth power that does not fluctuate, through the proprietary M.E.S.S. (Mass Energy Storage System) It enables the power to be stored when the fins are not moving and internally produces energy back into the system to augment the power supply when it is most needed.
One of the critical features of the F45 Hybrid System is its ability to recover energy. Any excess energy from fin deceleration (Zero Speed) or hydrodynamic force (underway) can also be recovered and stored for future use. This is called: Dynamic Energy Recovery.

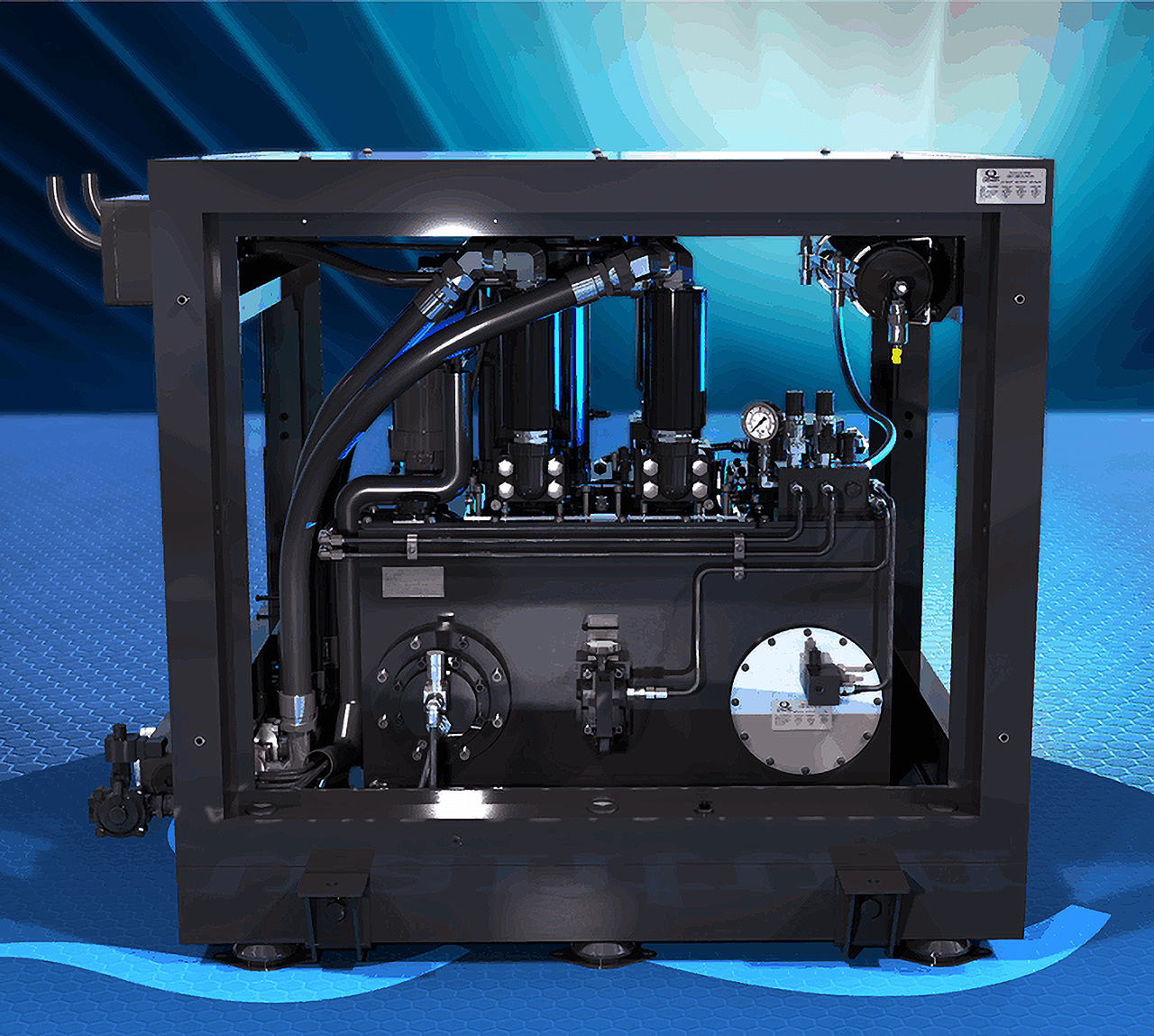

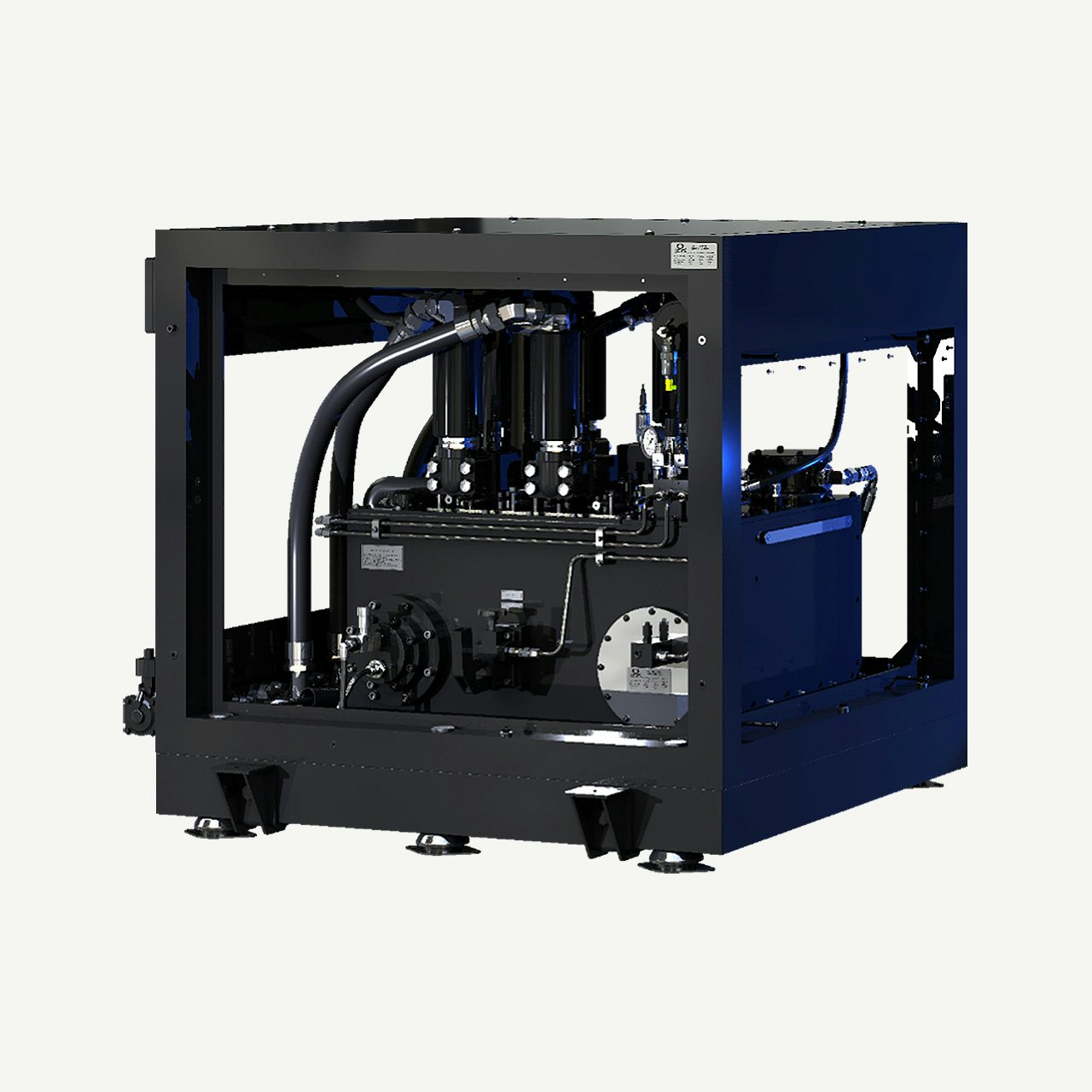

| F45 | F45 HyD90 |
|---|---|
| Operating Capacity Continuous* | 72kW (97hp) |
| Operating Pressure | Up to 3000psi |
| Tank Capacity | 233L (59Gal) |
| Length (overall)** | 1321 mm (52”) |
| Height (overall)** | 1206 mm (47.5”) |
| Depth (overall)** | 1118 mm (44”) |
| Weight Inc. (dry) | 1105 kg (2435lbs) |
“When you consider a yacht at anchor, the two largest power-consuming sources are air conditioning and stabilizers, and we are now taking 60% of the power out of the stabilizer system. This really makes the F45 a game changer. It’s a changer for everything!”
– John Allen, Quantum CEO
Understanding the F45
Unlike a traditional hydraulic system, the F45 generates smooth power that does not fluctuate and therefore doesn’t limit cyclical loading.
Besides its power savings, the F45 also boasts 60% greater efficiencies, partially due to the elimination of control valves in exchange for a servo motor.
The F45 buffers energy to mitigate the extreme fluctuations to stay within 15% – 20% of the dynamic range of the average power consumption.
