Across the globe, the Quantum name is synonymous with excellence in marine hydraulics design, installation, and reliability. With a highly-skilled team of engineers and naval architects, Quantum has developed a deep understanding of marine hydraulics, constantly improving and challenging the status quo.

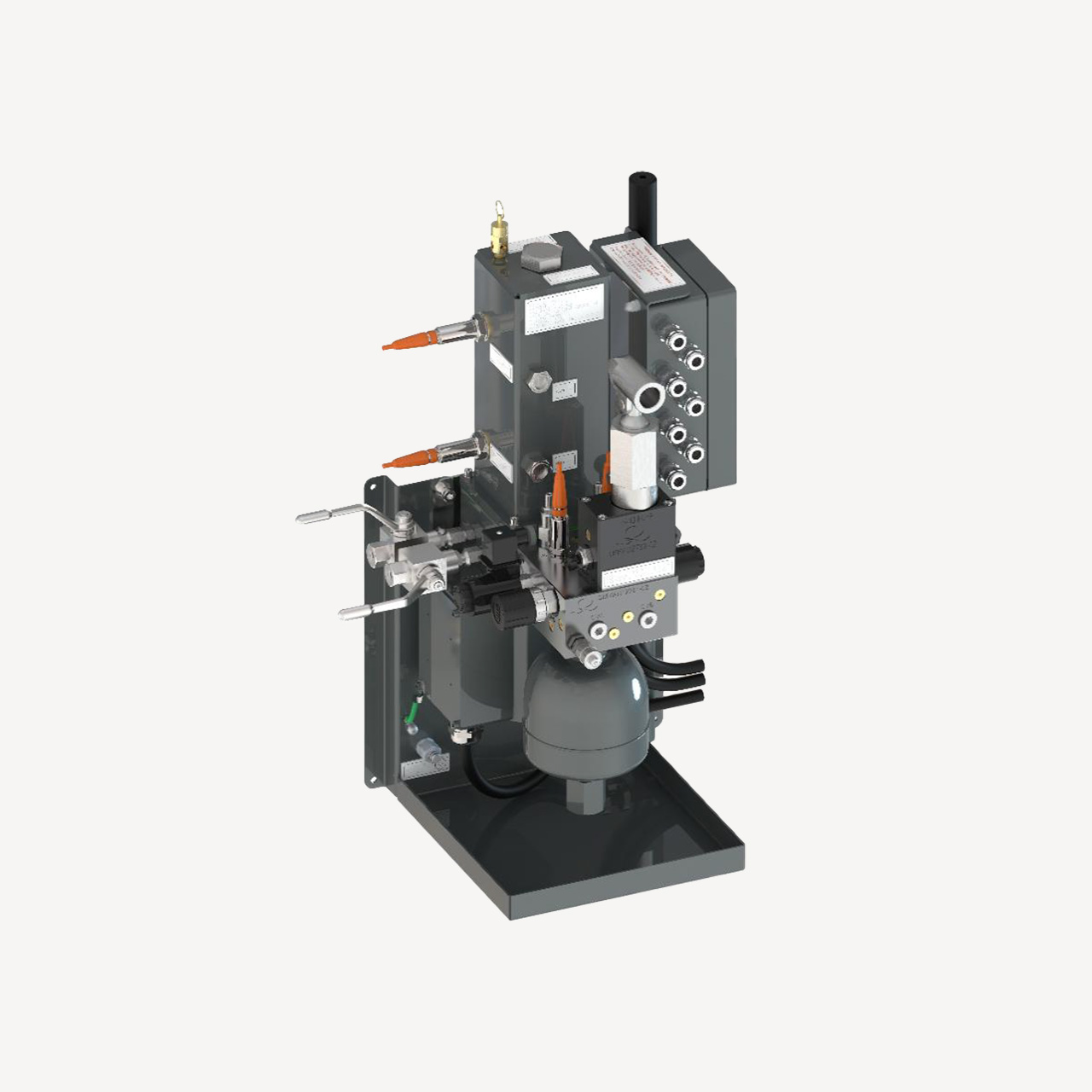

The latest generation, XT™ HPU series provides the fluid power for the XT™ Fin to extend and retract. It is a separate, compact unit that has a built-in control box, combining HPU and HMI functionality. It can be placed anyway as it features remote control capabilities. The XT™ HPUs are engineered to be smaller and more space-efficient, allowing for seamless integration into various vessel types without compromising performance. Utilizing a closed-loop hydraulic system, the XT™ power unit ensures precise and reliable operation, enhancing overall system responsiveness and durability.
Experience a serene onboard environment with the XT™ T5’s ultra-quiet technology, minimizing operational sound for maximum comfort. Designed for optimal performance, the XT™ T5 delivers superior control while consuming less energy, contributing to lower operational costs.
The hydraulic power unit provides the fluid power necessary to articulate the stabilizer fins. Quantum Power Units can be paired with a variety of stabilizer hull unit sizes and quantities based on vessel requirements providing a multitude of arrangement options.
Designed to consolidate maximum machinery output into a small footprint, this compact unit can be easily positioned into tight machinery spaces. The QP30C power unit consolidates on a single skid the hydraulic drive train on an aluminum frame with drip tray, stainless steel oil reservoir with associated gauging and sensors, as well as return filtration and oil cooler. The QP30C is an exquisitely built machine which can be depended upon to supply hydraulic power for stabilizer systems.

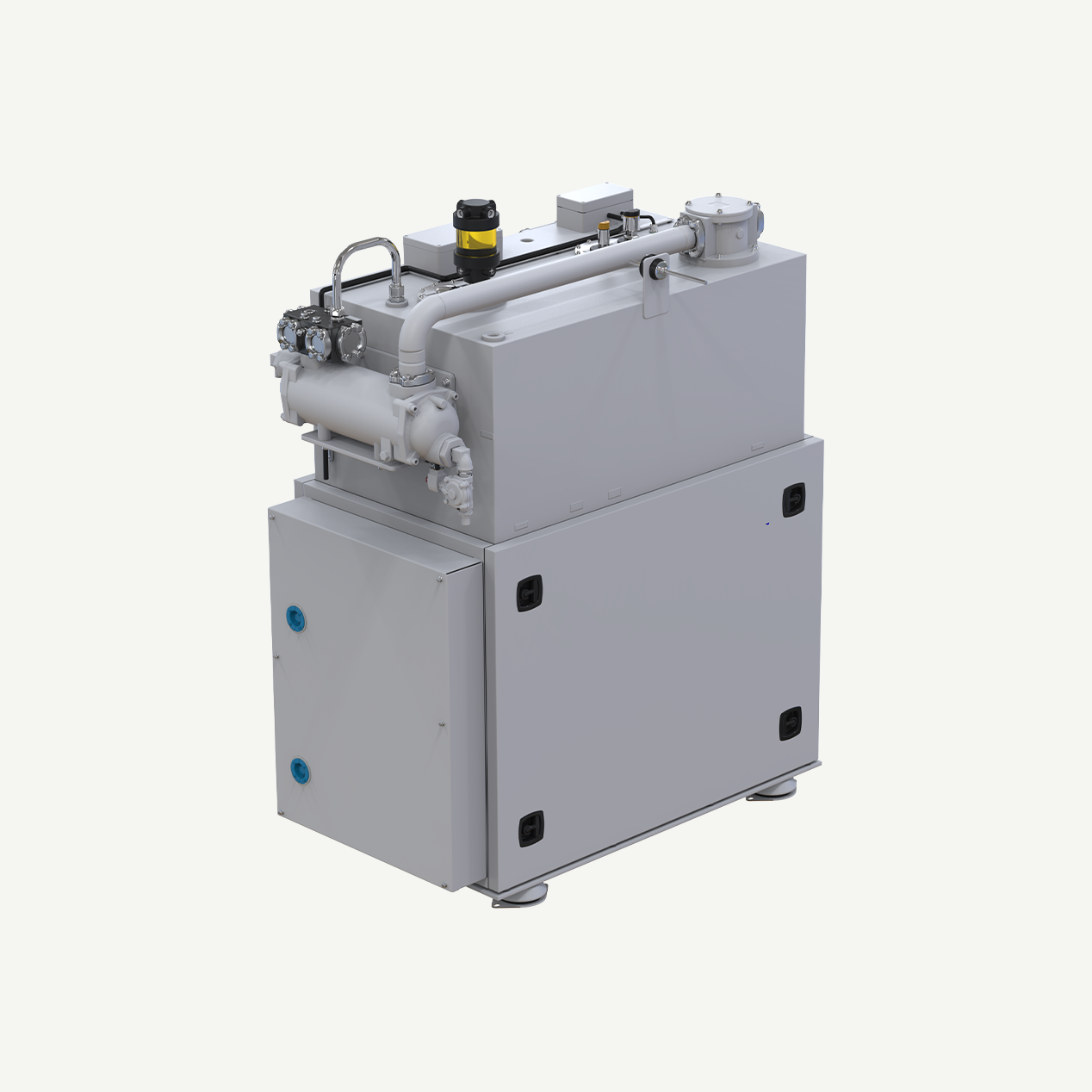

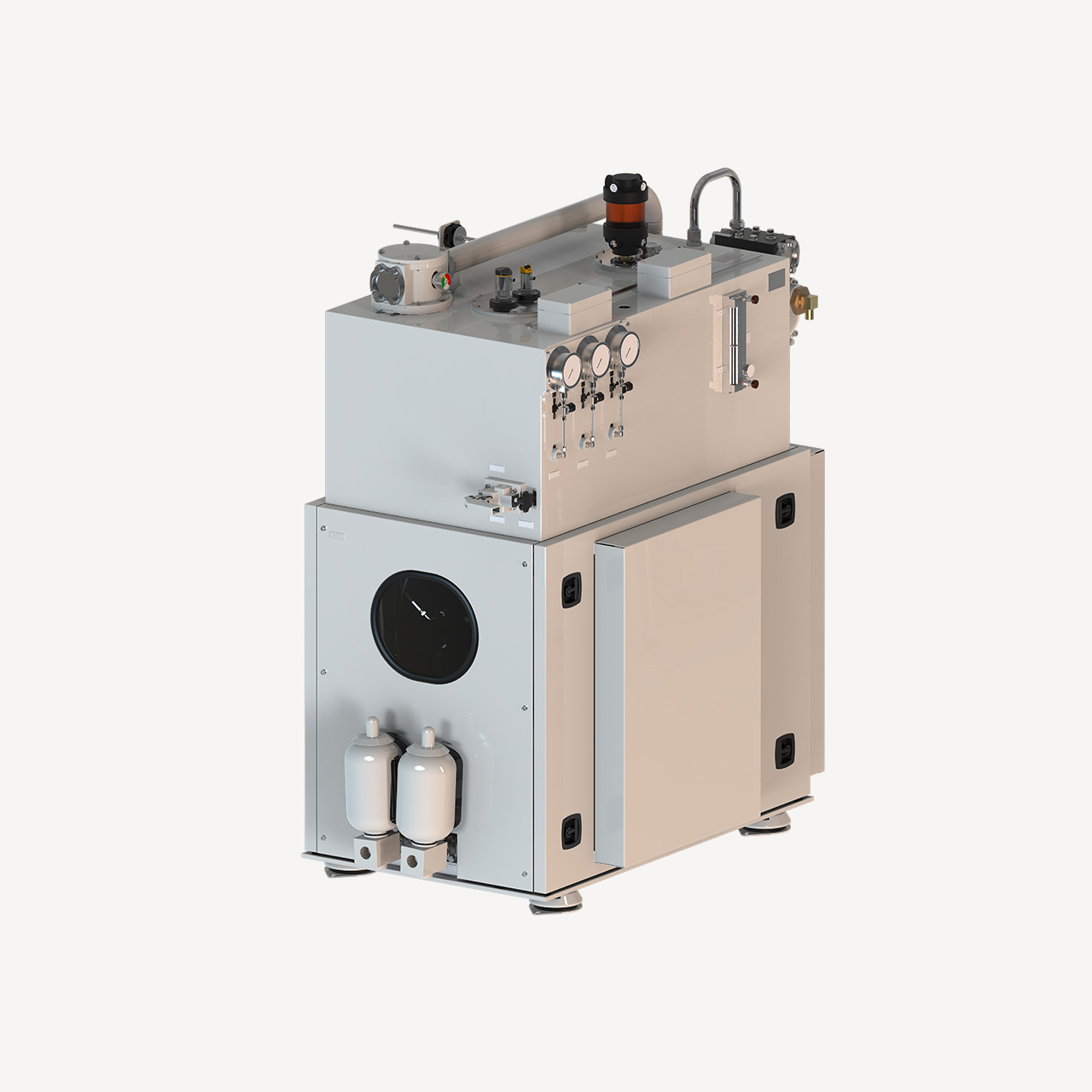

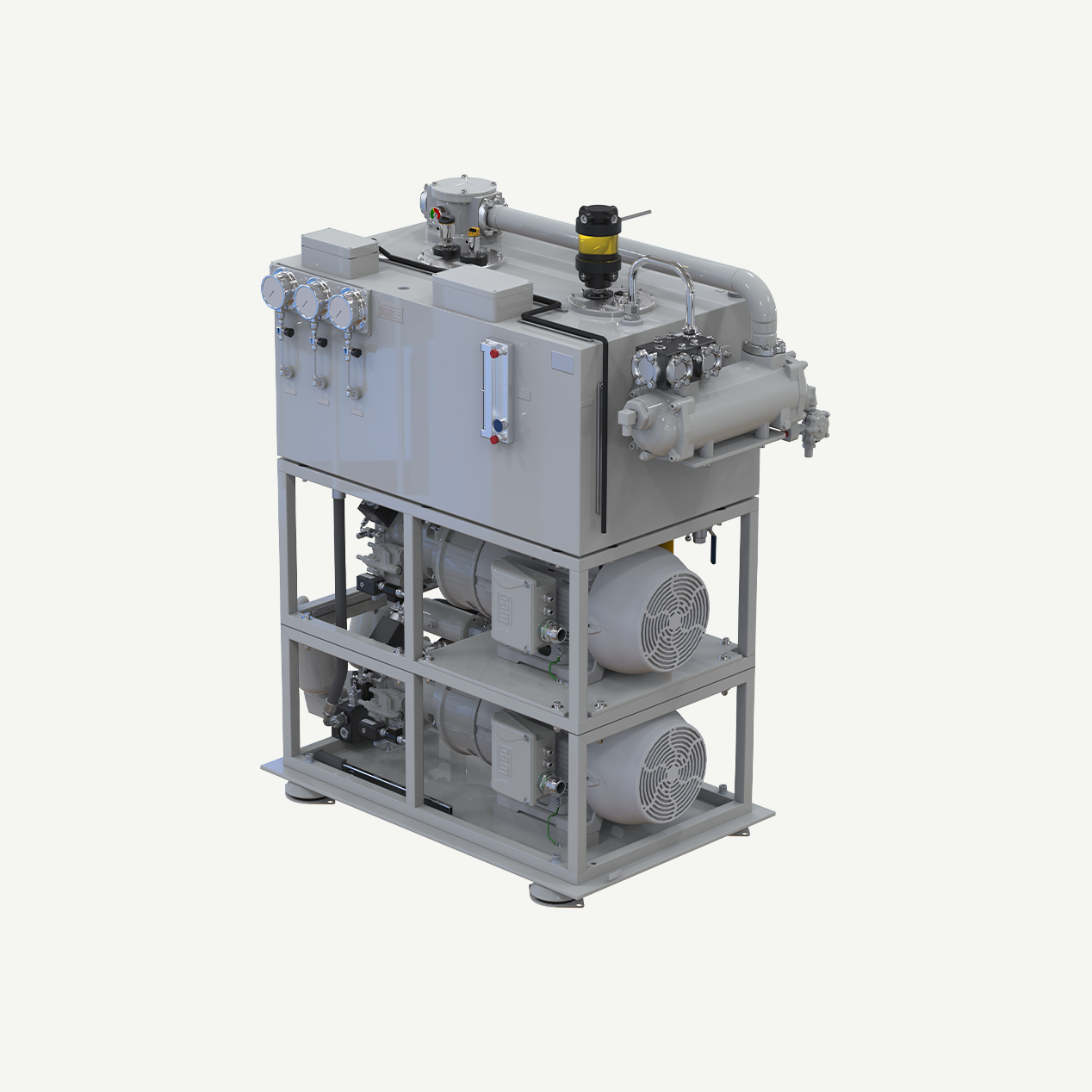

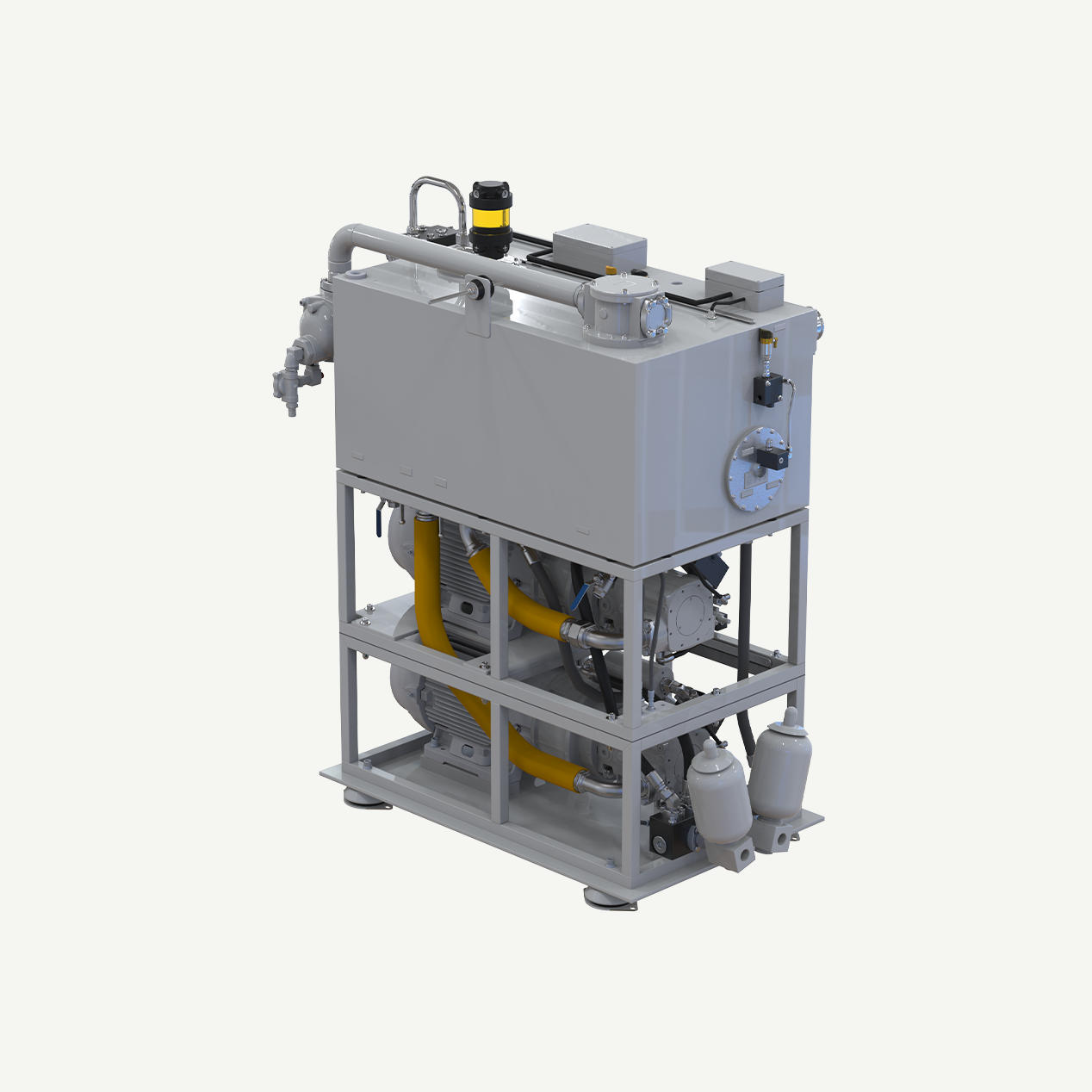

The dual hydraulic power unit provides the fluid power necessary to articulate the stabilizer fins. Quantum Power Units can be paired with a variety of stabilizer hull unit sizes and quantities based on vessel requirements providing a multitude of arrangement options.
An optional, 2.8hp integrated, backup hand pump is available for emergencies and guarantees operability during commissioning, testing, or power failures. It also enables an emergency retraction of the stabilizers, if needed. The hydraulic power unit is adaptive to power requirements with its multi-pressure capabilities.
Designed to consolidate maximum machinery output into a small footprint, this compact unit can be easily positioned into tight machinery spaces. The dual power power units consolidate on a single skid the hydraulic drive train on an aluminum frame with drip tray, stainless steel oil reservoir with associated gauging and sensors, as well as return filtration and oil cooler.

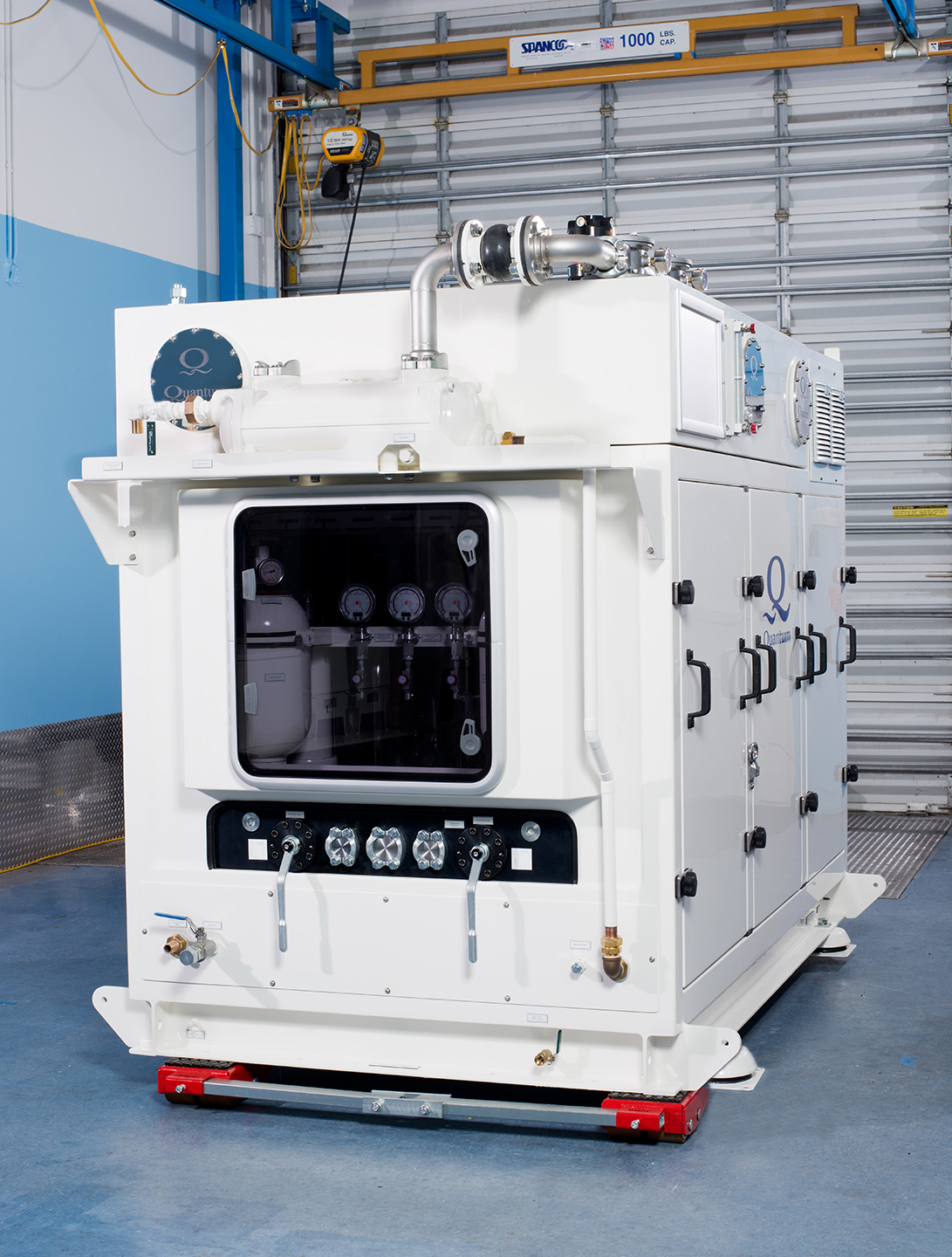

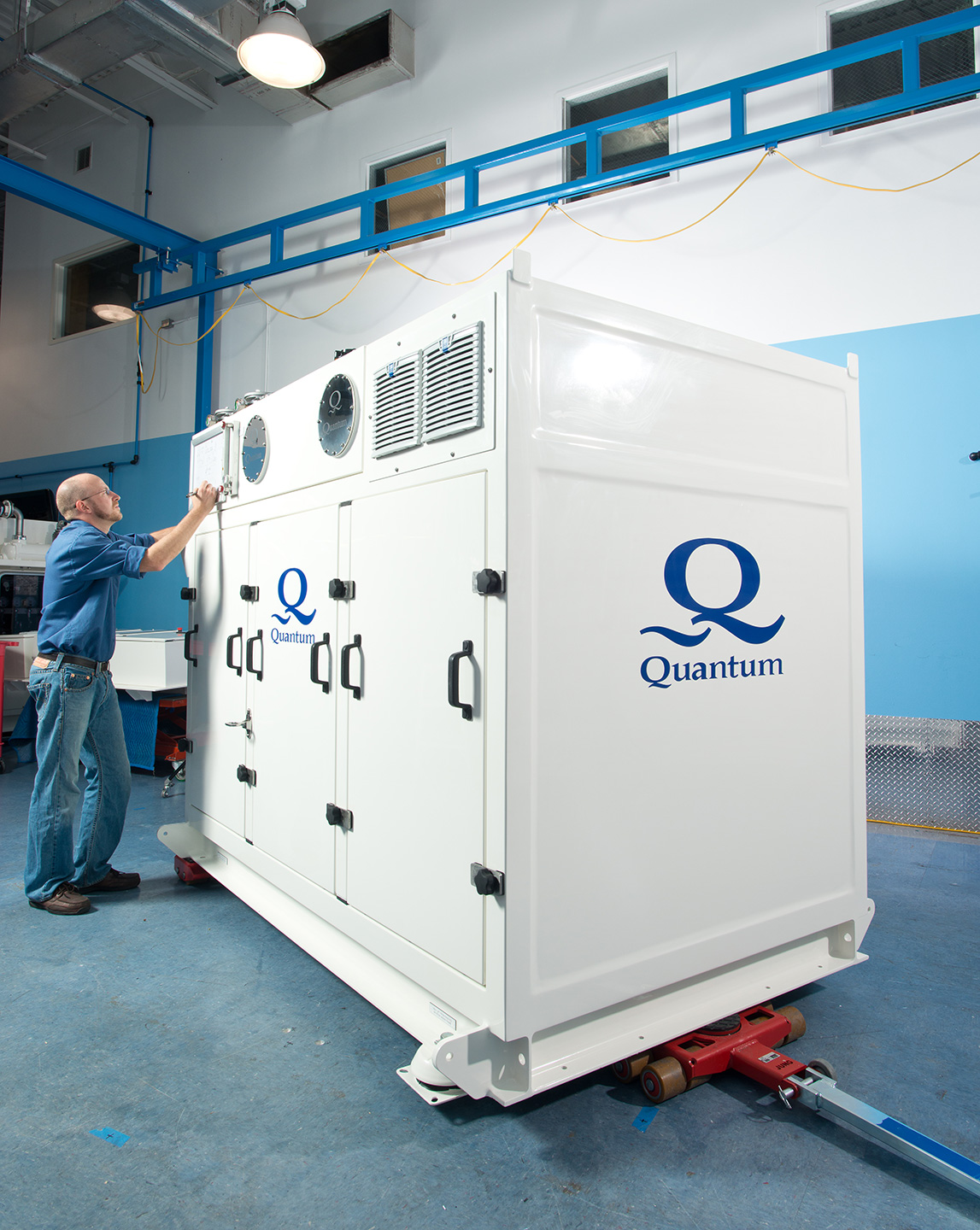

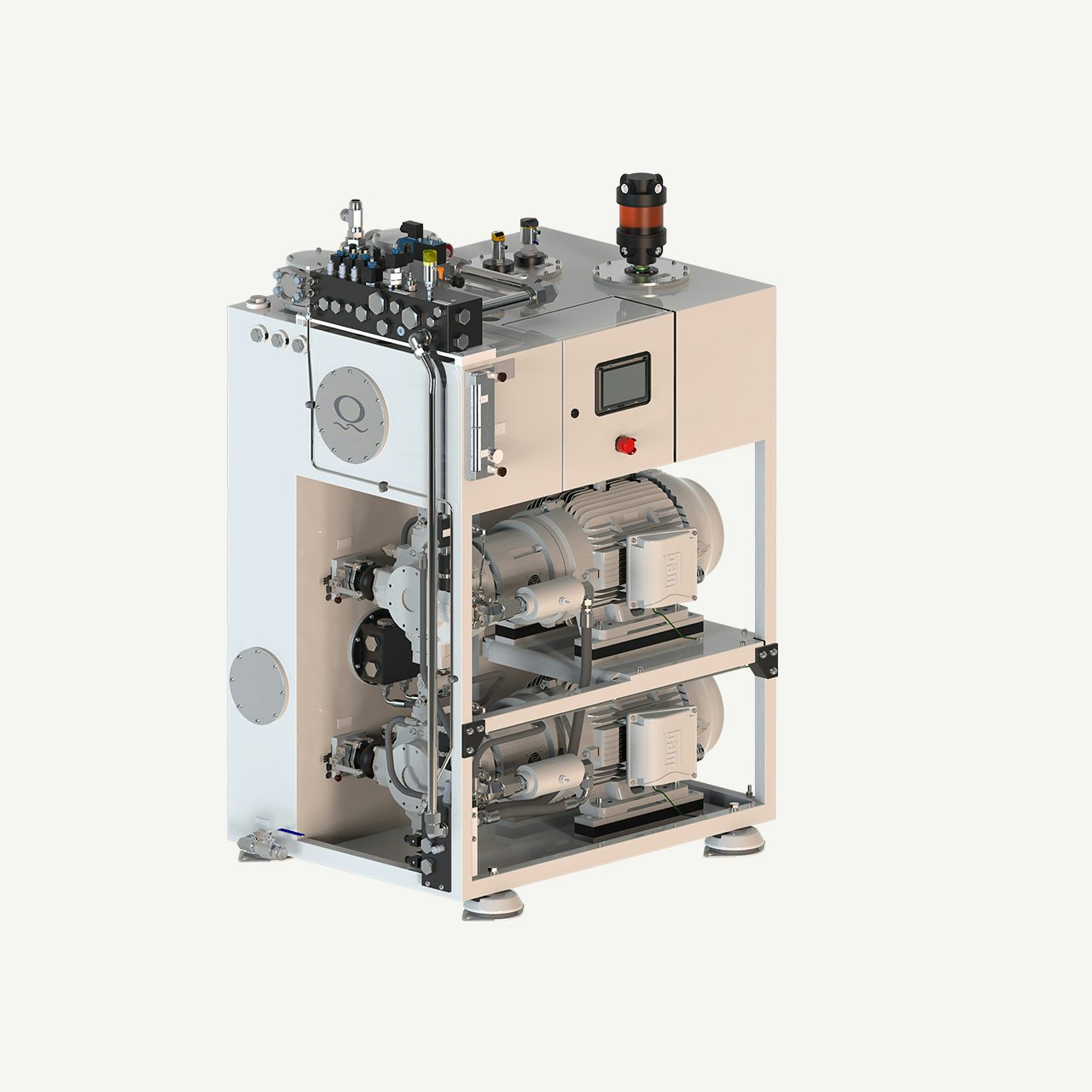

A Quantum Integrated System (QIS) hydraulic power unit combines the needs of various hydraulic components on a vessel into one central hydraulic system. Hydraulic consumers such as a stabilizer system, thruster, capstan, anchor winch, passerelle, davit, and crane are easily managed by a carefully crafted distribution system, which enables hydraulic power to be provided to any consumer(s) within the system while keeping the remaining consumers isolated and depowered. The QIS offers precision control of all hydraulic consumers and can be tailored to suit any equipment requirements.
The integrated power unit has two electric motors and can be augmented by numerous engine mounted pumps, all using the same oil reservoir. The unit also features a sophisticated electronic control system, as well as all components needed to meet the system’s power, cooling, filtration, and feedback needs incorporated into a single assembly. Designed to consolidate maximum output into a small footprint.

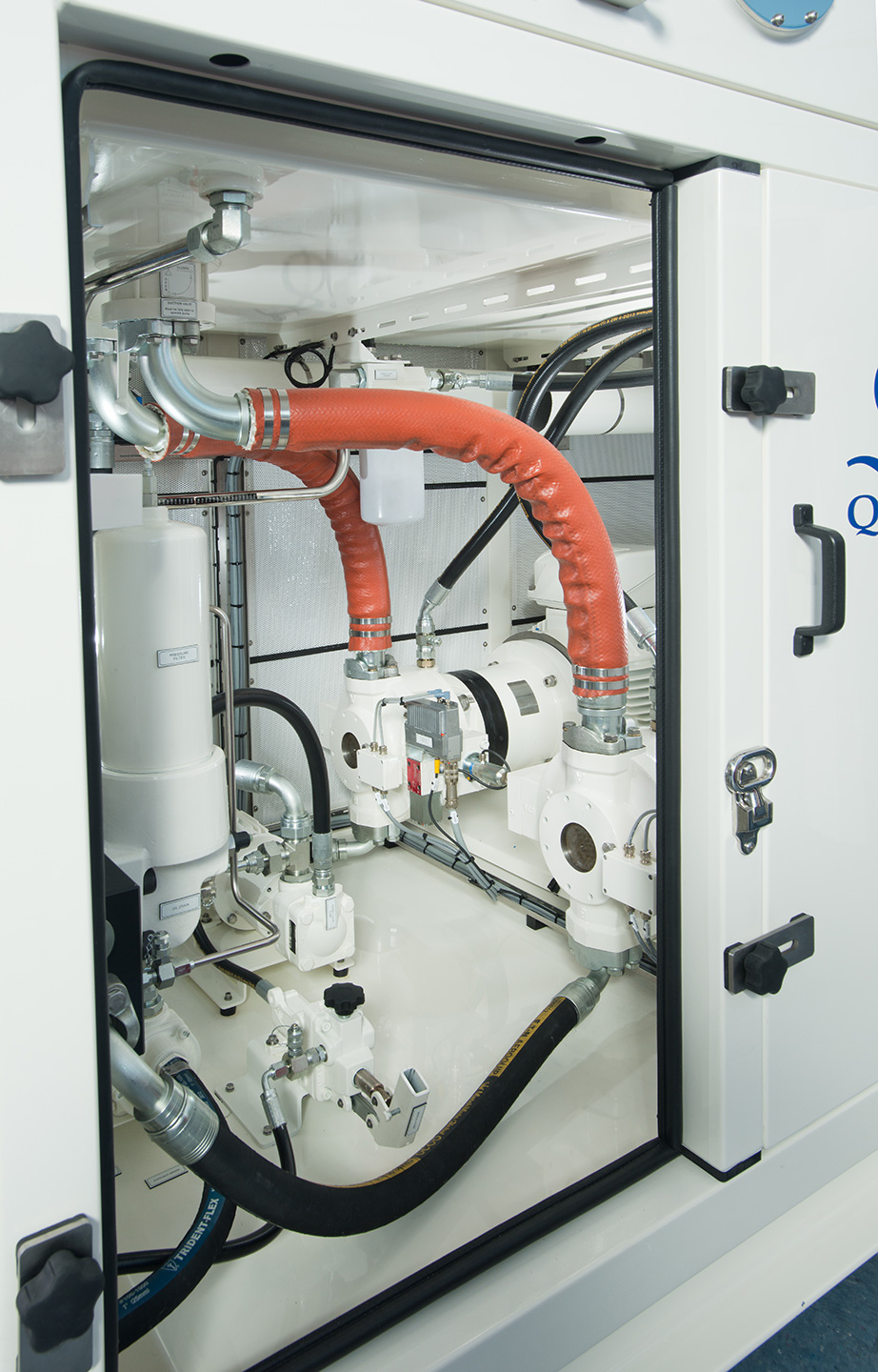

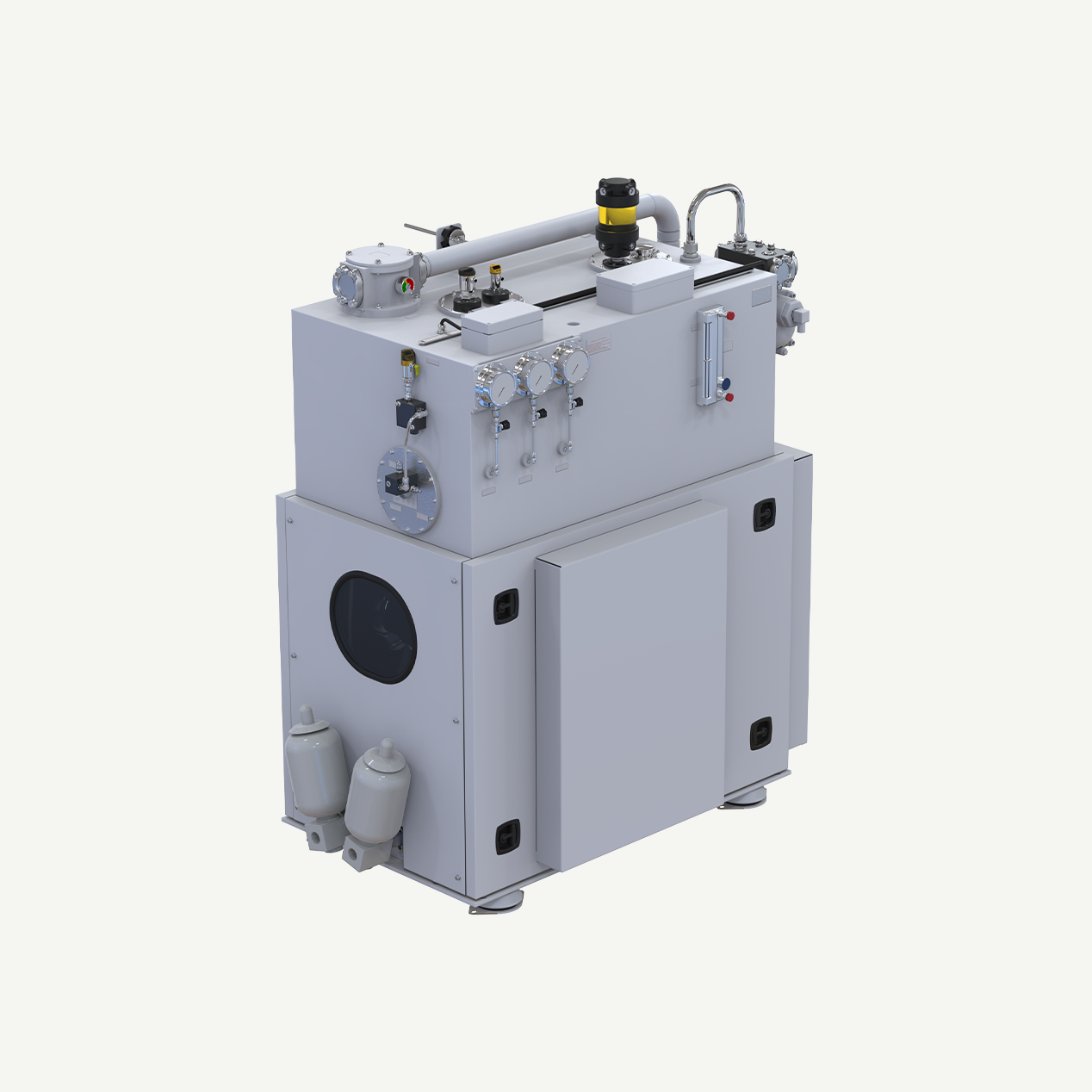

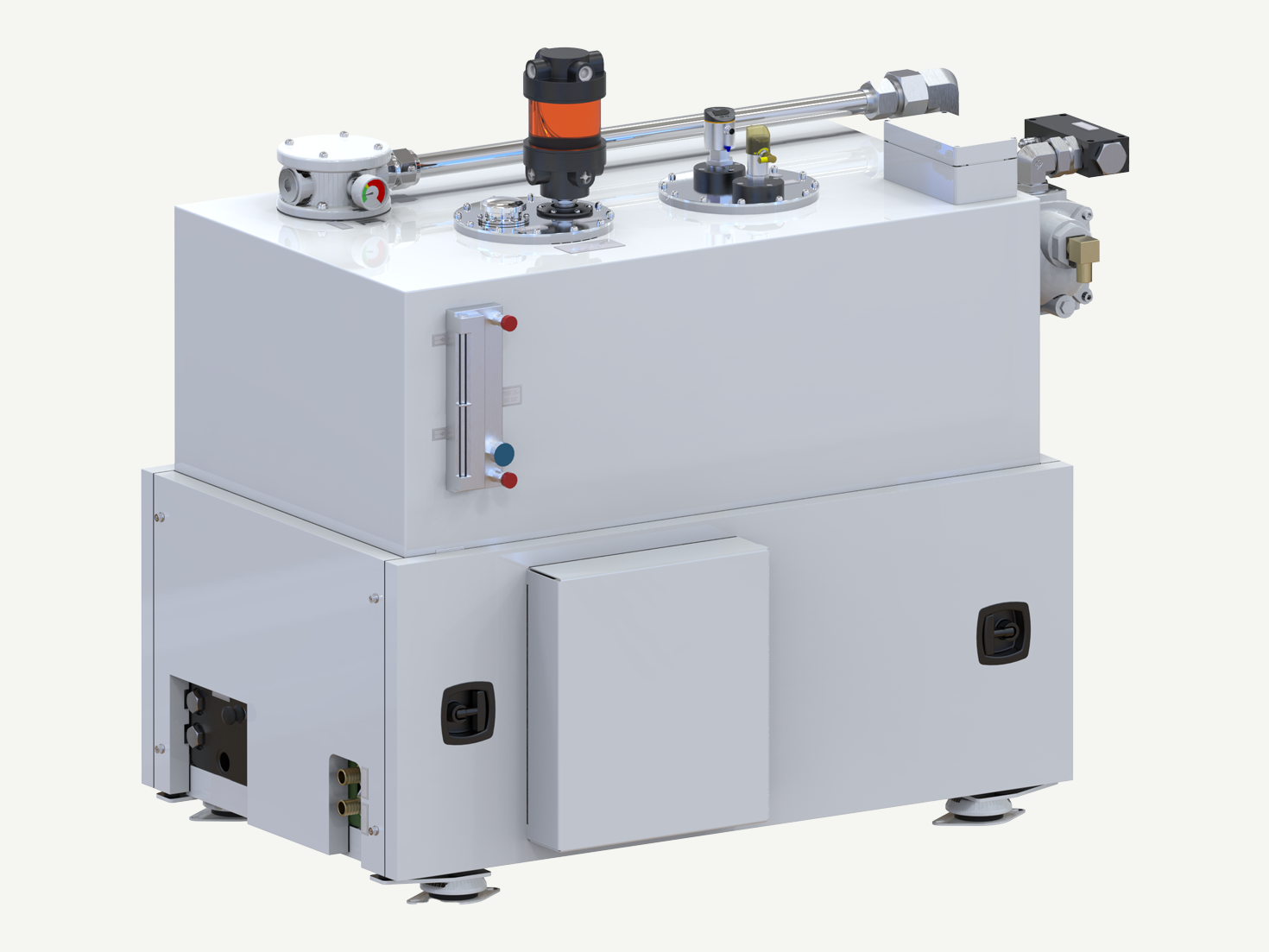

The all in-tank hydraulic power units provides the fluid power necessary to articulate any large Quantum Stabilizer. The fully submerged, fan-less electric motor coupled with the 100 cc multi pressure pump with a silencer on the pump outlet, therefore minimizing ambient noise. Multiple vibration dampeners in and outside the unit ensure minimal structural vibration transfer to further reduce noise.
Designed for any contingency, the heat exchanger with integrated fins and added gear pump will ensure the hydraulic system always keeps its cool.

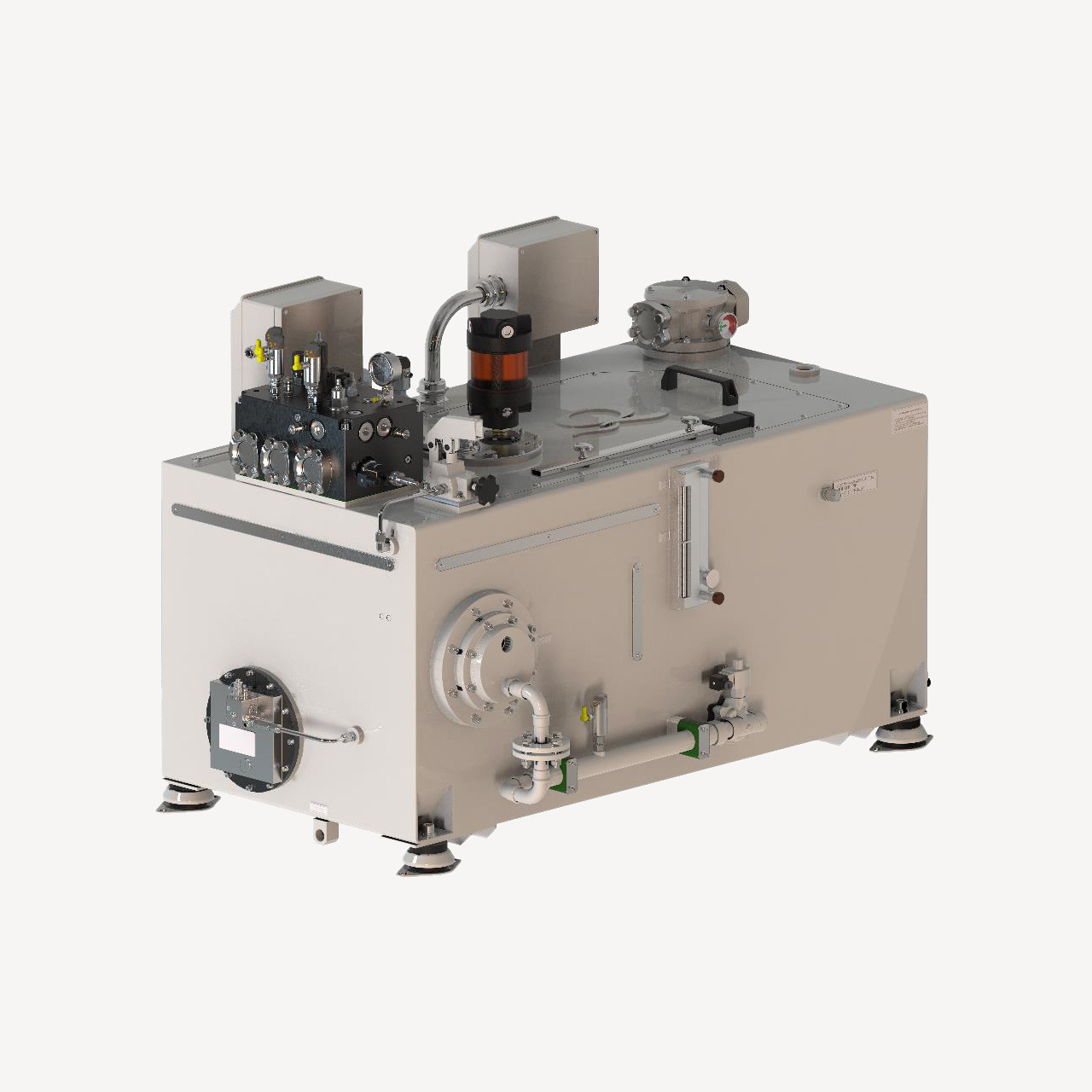

The all in-tank hydraulic power units provide the fluid power necessary to articulate any large Quantum Stabilizer. The fully submerged, fan-less electric motor coupled with the 175 cc multi pressure pump with a silencer on the pump outlet, therefore minimizing ambient noise. Multiple vibration dampeners in and outside the unit ensure minimal structural vibration transfer to further reduce noise.
Designed for any contingency, the heat exchanger with integrated fins and added gear pump will ensure the hydraulic system always keeps its cool. Independent hand and a 1.75hp integrated emergency backup pumps guarantee operability during commissioning, testing, or power failures and even can be used for emergency retraction of the stabilizers.

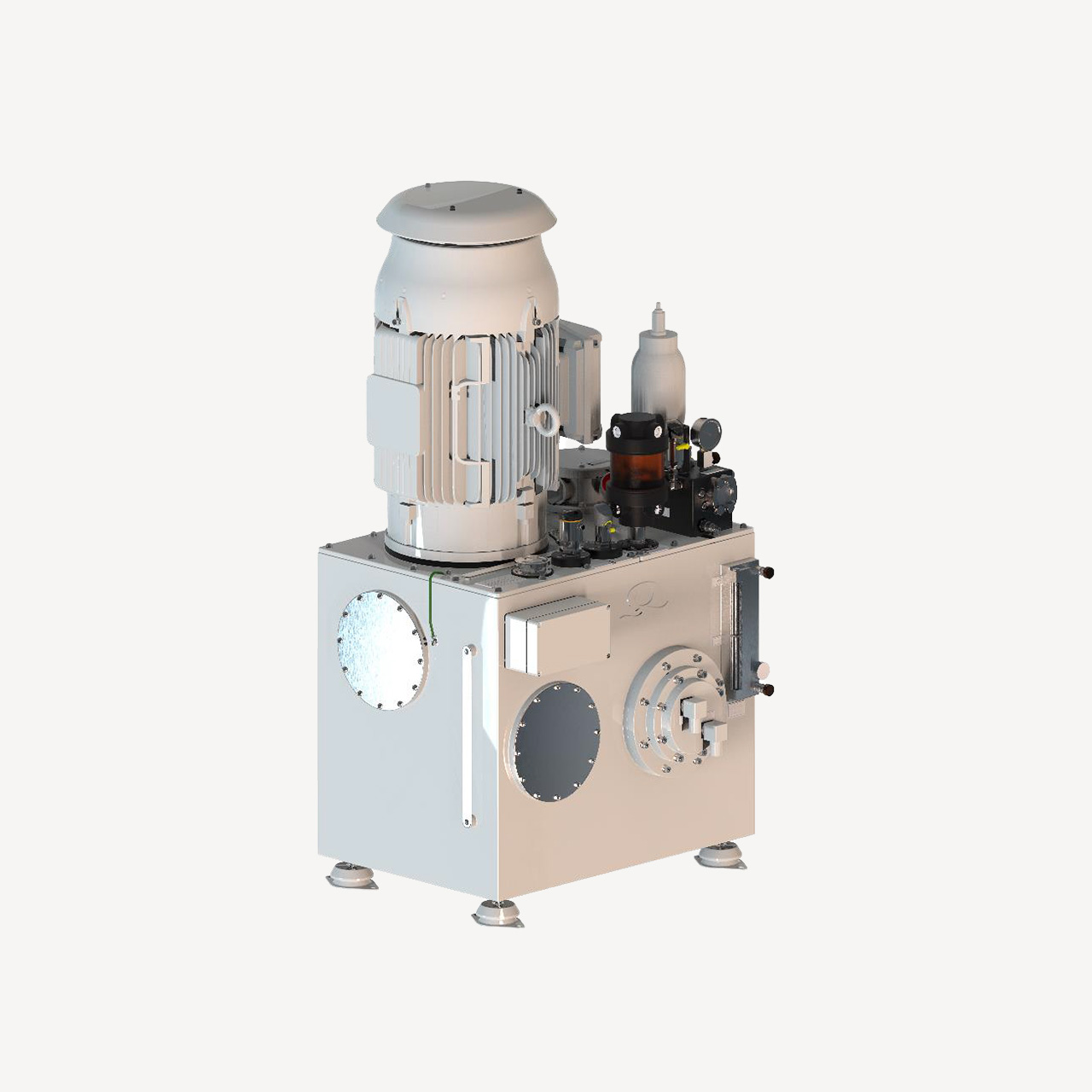

| XT T5 (Type 5) | QP20C | QP30C | QP2020 T2 | QP3030C | QP4040C | QIS160 | QIS210 | QP3030E | QP40V | QP50V | QP40A | QP60A | QP100A | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPU Configuration | XT™ | Single | Single | Dual | Dual | Dual | Integrated | Integrated | Vertical | Vertical | Vertical | In-Tank | In-Tank | In-Tank |
| Max. Power Capacity | 300W (0.4HP) | 15kW (20HP) | 22kW (30HP) | 30kW (40HP) | 45kW (60HP) | 60kW (80HP) | 30kW (40HP) | 45kW (60HP) | 45kW (60HP) | 30kW (40HP) | 37kW (50HP) | 30kW (40HP) | 45kW (60HP) | 75kW (100HP) |
| Dimensions (L x W x H) | 425mm x 327mm x 644mm | 1061mm x 508mm x 1175mm | 1551mm x 790mm x 1333mm | 1018mm x 727mm x 1610mm | 1544mm x 912mm x 1712mm | 1879mm x 999mm x 1972mm | 1376mm x 873mm x 1556mm | 1438mm x 992mm x 1778mm | 1568mm x 680mm x 1396mm | 914mm x 659mm x 1485mm | 914mm x 659mm x 1485mm | 1674mm x 899mm x 1067mm | 1626mm x 985mm x 1027mm | 1626mm x 985mm x 1027mm |
| HPU Weight (Dry) | 33.1kg | 398kg | 575kg | 703kg | 1089kg | 1476kg | 803kg | 1321kg | 760kg | 621kg | 621kg | 602kg | 857kg | 1067kg |
| HPU Weight (Operational) | 34.5kg | 562kg | 832kg | 835kg | 1453kg | 1910kg | 1127kg | 1847kg | 992kg | 818kg | 818kg | 984kg | 1402kg | 1650kg |
One of the defining characteristics of Quantum is our commitment to providing the ideal system for every client. From the hull unit and controls to the power unit and stabilizers, all Quantum systems are fully customized for each vessel. Our team of hydraulic and electrical experts will provide guidance through the selection of the right power unit for your vessel.
Quantum Hydraulic Power Units (HPUs) have earned a reputation as the “Gold Standard” in marine engineering. The most notable features:
A Quantum System is not only known for delivering unparalleled quality and the latest stabilizer technology, but also respected for the competent service Team that supports the systems all over the world. With operations in Fort Lauderdale (US), Nuth (The Netherlands) and Barcelona (Spain) Quantum is uniquely positioned to service, refit and update vessels internationally. Over the past several decades, our service team has earned recognition for delivering quality workmanship, outstanding system performance, and hydraulic expertise.
From changing hoses, valves and pumps to refitting or upgrading to a newer system, our service team has the competence and skills to handle your job with ease. Contact our team today.
Quantum has crafted a diverse series of marine hydraulic power systems, offering a range of sizes, types, and options designed to serve the specific needs of a vessel to operate.
For over 40 years, Quantum has manufactured hydraulic solutions for a variety of industries, including:
The ability to select from over 30 unique ship stabilizer hydraulic platforms is a valuable benefit that sets the Quantum name apart.
